Main functions

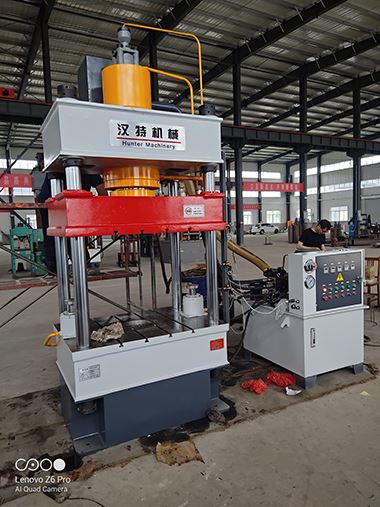

With three beam and four column structure,optimized design by computer,simple,economical and practical.the cartridge valve integrated system is applicable to the hydraulic control system,with reliable actuation,long service life and hydraulic shock,reducing connection lines and leaking points.the independent electrical control system works reliably and runs directly,convenient for maintenance.the button is suitable for centralized control,with adjusting(jog) and single (semi-auto)operating mode.two forming processes including constant stroke and constant pressure are attainable,featuring pressure maintaining and time delay.the work pressure and stroke can be adjusted within specified range based on process requirements.
Main features
Application:this series hydraulic press is applied to drawing,bending ,flanging,cold extrusion,blanking and other process about metal materials,also to calibration,press fitting,and compression molding about powder products,abrasive products,plastic products and insulating materials.
Optional devices
Blanking buffer device/traverse workbench/light curtain safety protection device/oil cooling installation/touch industrial display/knockout device(hydraulic or mechanical)/mold quick clamping mechanism/imported PLC/floating guide and rolling bracket for changing mold/overhead hydraulic system/sliding block locking mechanism.
model | Nominal pressure | Liquid pressure (Mpa) | Sliding block stroke (mm) | Opening height (mm) | Hydraulic cushion nominal force (KN) | Hydraulic cushion stroke (KN) | Slide speed (mm/s) | Workbench effective size | Dimensions of hydraulic cushion | Motor power | ||||
Air way down (mm/s) | Work (mm/s) | Return trip (mm/s) | Left and right (mm) | Front and back (mm) | Left and back (mm) | Front and back (mm) | ||||||||
YJH27-250 | 2500 | 25 | 700 | 1000 | 500*2 | 260 | 260 | 7-15 | 90 | 1300 | 1000 | 1100 | 660 | 15 |
YJH27-315 | 3150 | 25 | 800 | 1100 | 500*2 | 300 | 300 | 5-12 | 60 | 1300 | 1200 | 1120 | 810 | 18.5 |
YJH27-315 | 3150 | 25 | 800 | 1100 | 500*2 | 300 | 300 | 5-12 | 60 | 1600 | 1300 | 1420 | 970 | 18.5 |
YJH27-400 | 4000 | 25 | 800 | 1250 | 500*2 | 300 | 300 | 4-10 | 70 | 1600 | 1300 | 1420 | 970 | 22 |
YJH27-500 | 5000 | 25 | 900 | 1500 | 500*2 | 350 | 350 | 7-15 | 80 | 1400 | 1400 | 970 | 970 | 22 |
YJH27-630 | 6300 | 26 | 900 | 1500 | 400*4 | 350 | 350 | 5-12 | 85 | 2200 | 1600 | 1600 | 1100 | 2*18.5 |
YJH27-630A | 3150*2 | 26 | 1200 | 1750 | 400*6 | 400 | 400 | 5-12 | 85 | 3200 | 2200 | 2650 | 1600 | 2*18.5 |
YJH27-800 | 8000 | 25 | 1000 | 1800 | 400*4 | 400 | 400 | 5-12 | 95 | 2200 | 1600 | 1600 | 1100 | 2*22 |
YJH27-800A | 800 | 26 | 1200 | 1750 | 400*6 | 400 | 400 | 5-12 | 95 | 3500 | 2500 | 2900 | 1900 | 2*22 |
YJH27-1000 | 10000 | 25 | 1000 | 1800 | 500*4 | 400 | 400 | 5-12 | 85 | 2500 | 1800 | 2020 | 1270 | 2*30 |
YJH27-1250 | 6300*2 | 25 | 1300 | 1800 | 500*6 | 400 | 400 | 5-12 | 85 | 3500 | 2500 | 2920 | 1420 | 2*37 |
YJH27-1600 | 5000*3 | 25 | 1500 | 2000 | 500*6 | 500 | 500 | 5-12 | 70 | 4000 | 2600 | 3220 | 2020 | 3*30 |
YJH27-2000 | 6300*2 +8000 | 25 | 1600 | 2000 | 500*8 | 500 | 500 | 4-10 | 75 | 4600 | 2600 | 3820 | 2020 | 3*37 |
