500T Four-column Hydraulic Press

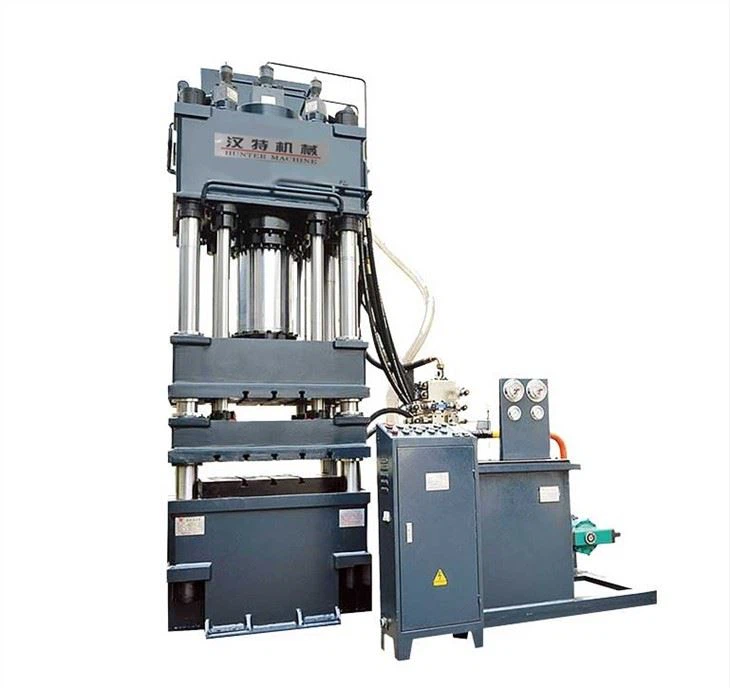

YH32-500T three-beam four-column hydraulic press

Features:

YH32 series three-beam four-column hydraulic press is a kind of mechanical equipment that uses the static pressure of the hydraulic oil delivered by the oil pump to process metal, plastic, rubber, wood, powder and other products. It is often used in pressing processes and press forming processes, such as: forging, stamping, cold extrusion, straightening, bending, flanging, sheet deep drawing, powder metallurgy, pressing and so on.

The machine has an independent power mechanism and electrical system. It adopts button centralized control and can realize three working modes: adjustment, manual and semi-automatic: the working pressure of the machine, the pressing speed, the stroke and range of no-load fast down and deceleration, all can be based on the process It needs to be adjusted and can complete the ejection process. There are three process methods: ejection process and stretching process. Each process is a fixed pressure and fixed process. Two process actions are available for selection. The fixed pressure forming process has Ejection delay and automatic return.

The main function:

1) Computer optimized structure design, three-beam four-column structure, simple, economical and practical.

(2) The hydraulic control adopts a cartridge valve integrated system, which is reliable in action, long in service life, small in hydraulic shock, and reduces connecting pipelines and leakage points.

(3) Independent electrical control system, reliable work, objective action and convenient maintenance.

(4) Adopt button centralized control, with three operation modes: adjustment, manual and semi-automatic.

(5) Through the operation panel selection, it can realize the two forming processes of constant stroke and constant pressure, and has functions such as pressure holding time delay.

(6) The working pressure of the slider, the stroke range of the no-load fast descending and slow work advancement can be adjusted according to the process requirements.

(7) The electrical system with independent power mechanism adopts button centralized control, which can realize three working modes of adjustment, manual and semi-automatic;

Product parameters:

YH32-Four-column hydraulic press
Technical Parameters		150T	200T	250TA	250TB	315T	500T
Nominal pressure		2000	2000	2500	2500	3150	5000
System pressure		25	25	25	25	25	25
Slide stroke		500	500	500	500	500	1000
Maximum opening height		800	800	800	800	800	1400
Effective size of worktable	left and right	1000	1000	1000	1000	1000	1600
	Before and after	1000	1000	1000	1000	1000	1400
Slider speed	Empty trip	120	120	120	120	120	120
	Gongjin	12	14	14	14	14	14
	Return trip	80	85	90	90	90	90
Ejection force		300	300	300	300	300	300
Motor Power		11	11	15	15	18.5	18.5

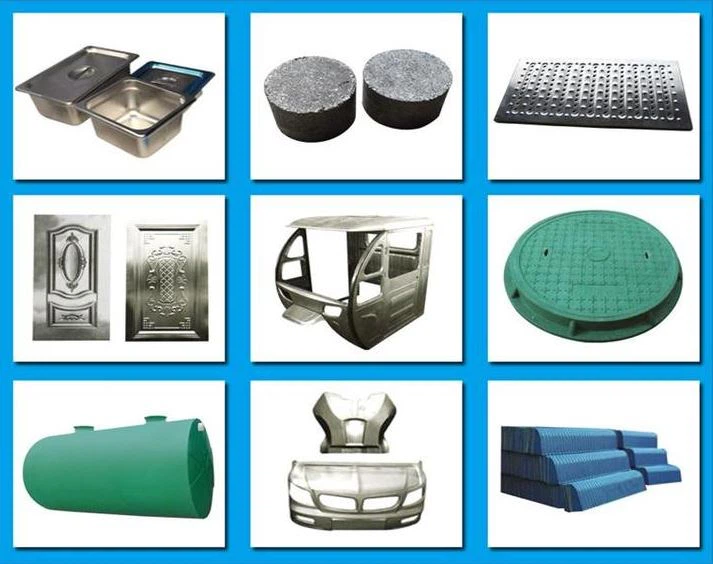

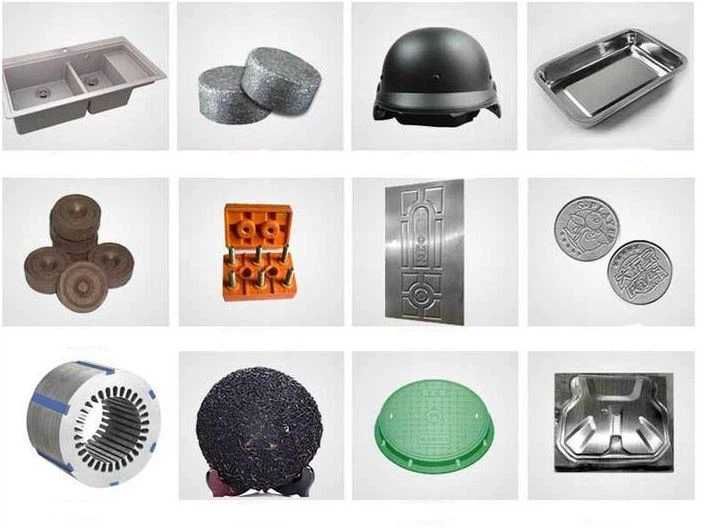

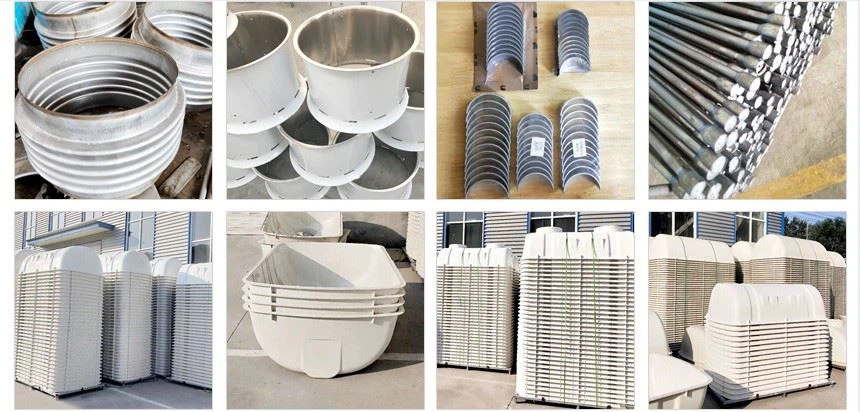

Processing range:

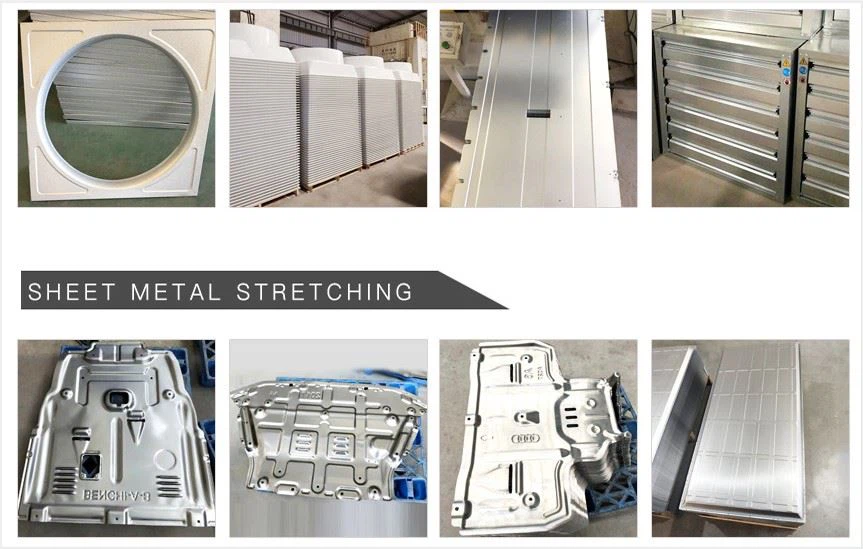

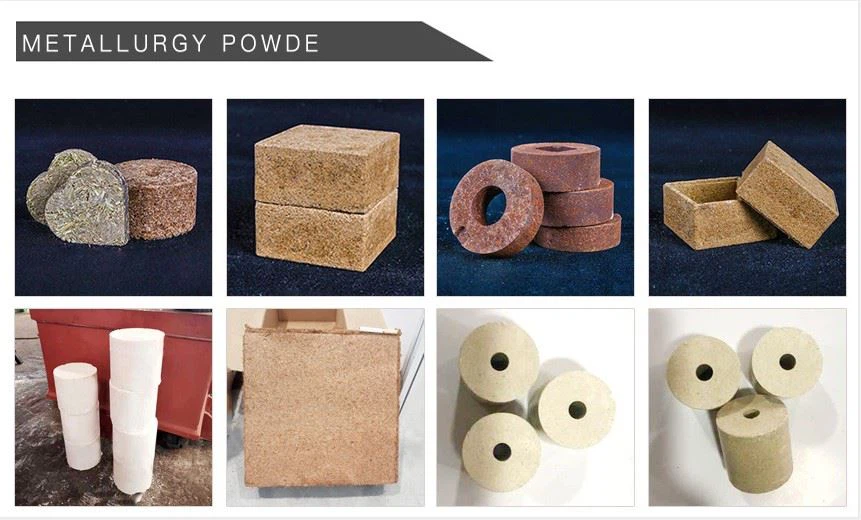

It is suitable for the stretching and punching of metal materials (punching buffer device is optional), bending, flanging, cold extrusion and other stamping processes. It is also suitable for correction and pressing of powder products and abrasive products and plastic products. Press molding of insulating materials.

Common problem:

Are you a manufacturer?

Yes, the company has a variety of high-precision production equipment and inspection equipment, a complete production team, and many years of production experience to meet your ordering needs.

How to install the machine?

To provide customers with a full range of technical support, we can also send technicians abroad to install and train for our customers.

How about after-sales?

The company provides 24-hour after-sales service, after-sales service mailbox: huntermachinery@gamil.com
