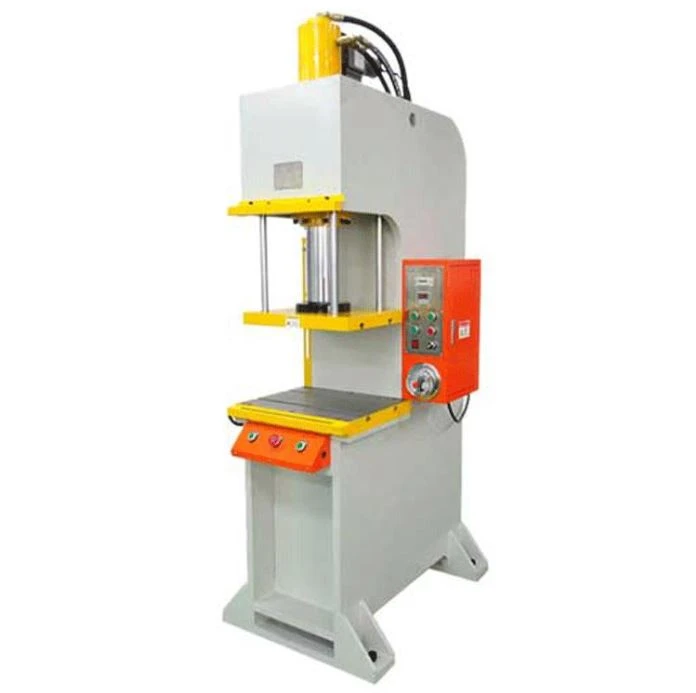

YH41-63T customized single-column hydraulic press
Features:
1. The machine body adopts Q235B, which is welded by submerged arc welding. After welding, the machine body is not easily deformed through vibration treatment.
2. The machine is equipped with a separate hydraulic and electrical control system. It adopts button centralized control, which can realize two molding processes of fixed stroke and fixed pressure, and has functions such as pressure display, stroke, and pressure adjustment.
The 3.63 ton single-column hydraulic press has a pressure system located inside the machine body, beautiful appearance and easy operation.
4. Pressure head correction can be designed, with four-column guide pin guidance, and copper and hard chromium plating of the column and piston rod after quenching. The oil pump inlet is equipped with a filter device, and the oil pump and valve have a long service life. High-pressure hoses are used for oil connection to reduce machine noise.
In addition, according to user requirements, additional components such as PLC, grating protection and man-machine interface (touch screen) can be configured. For customer requirements, we can customize production to meet customer production process requirements.
Product parameters:
| Technical parameters of single-column hydraulic press | YH41-20T | YH41-40T | YH41-60T | YH41-100T | YH41-200T | YH41-315T | ||
| Nominal pressure (KN) | 200 | 400 | 600 | 1000 | 2000 | 3150 | ||
| Liquid working pressure (Mpa) | 25 | 26 | 25 | 26 | 25 | 25 | ||
| Throat depth (mm) | 200 | 200 | 260 | 300 | 300 | 360 | ||
| Indenter stroke (mm) | 260 | 260 | 260 | 400 | 360 | 600 | ||
| Working speed (mm/s) | 15 | 15 | 15 | 6-15 | 7-18 | 7-18 | ||
| Return speed (mm/s) | 25 | 22 | 22 | 25 | 40 | 40 | ||
| Maximum distance from slider to worktable | Press fit | 500 | 500 | 500 | 700 | 700 | 1000 | |
| Correction | 360 | 360 | 360 | 500 | 500 | 800 | ||
| Working desk size | Press fit | Before and after | 400 | 400 | 500 | 600 | 600 | 800 |
| left and right | 500 | 500 | 600 | 700 | 700 | 1000 | ||
| Correction | Before and after | 400 | 400 | 600 | 600 | 800 | 800 | |
| left and right | 600 | 600 | 800 | 800 | 1000 | 1500 | ||
| Motor power (KW) | 2.2 | 3 | 4 | 5.5 | 15 | 22 | ||
Processing range:
1. Shaft parts, correction of profiles and press fitting of shaft sleeve parts;
2. Processes such as stretching, punching, bending, flanging, correction, pressing, cold and hot extrusion of metal materials;
3. Press molding of powder products, plastic products and insulating materials.
4. At the same time, it can also complete the bending, embossing, blanking, correction, nesting, and stretching of simple parts of sheet parts.
Common problem:
Are you a manufacturer?
Yes, the company has a variety of high-precision production equipment and inspection equipment, a complete production team, and many years of production experience to meet your ordering needs.
How to install the machine?
To provide customers with a full range of technical support, we can also send technicians abroad to install and train for our customers.
How about after-sales?
The company provides 24-hour after-sales service, after-sales service mailbox: huntermachinery@gamil.com
