YH92 special hydraulic equipment for railway machinery
Features:
The slider moves hydraulically, and it is easy and free.
High CNC precision, servo control energy saving and emission reduction.
Pressure curve production, data collection, storage, qualification determination, performance testing.

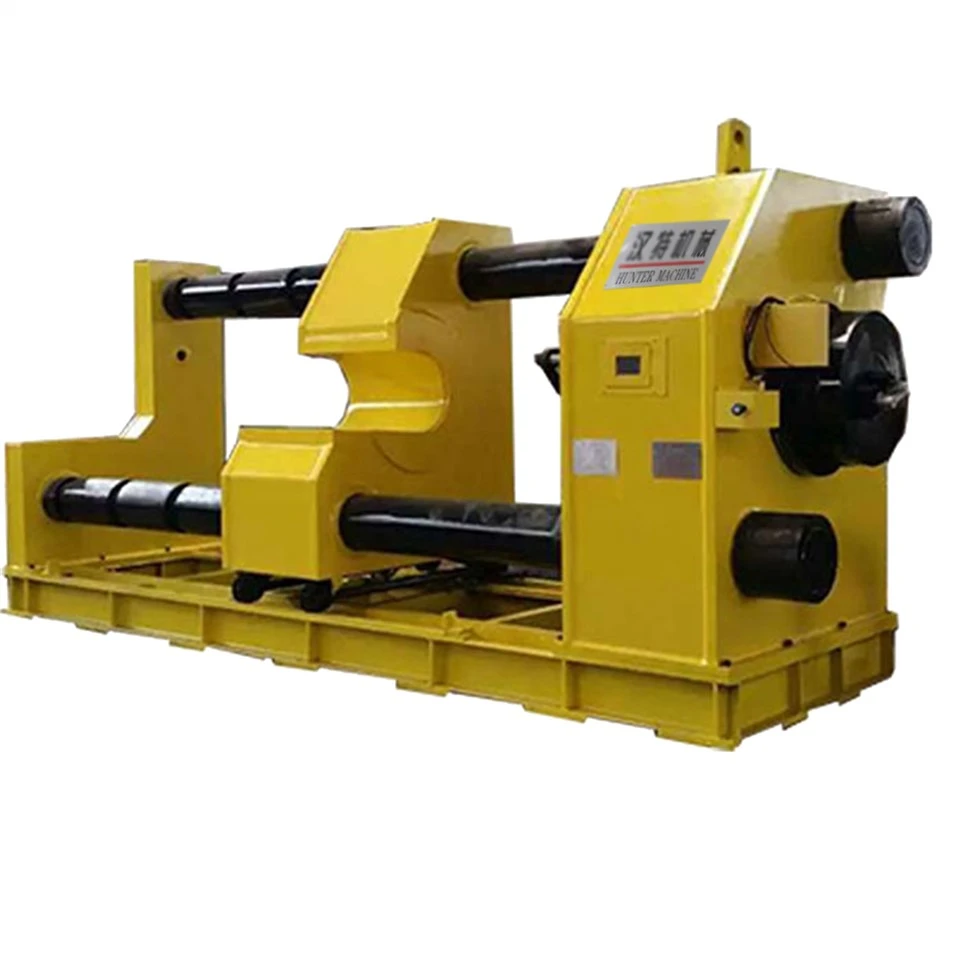

The axle press is mainly composed of: cylinder seat, sliding beam, pull column, support beam, machine seat, electrical part and hydraulic part. The cylinder seat and the movable beam form a tension frame by two columns. The rear bracket plays the role of supporting the column. The movable beam is driven by a motor and can travel on the guide rail to meet the pressing and disassembly of workpieces of different lengths. There is a card on the left side of the movable beam. Iron, fix it in a certain position, when the disassembly and assembly of the workpiece is fixed, the assembly and disassembly of the workpiece are completed by the expansion and contraction of the hydraulic cylinder.
Product parameters:
| Axle press | YH92-315T | YH92-500TA | YH92-500TB | YH92-630T |
| Nominal pressure | 3150 | 5000 | 5000 | 6300 |
| System pressure | 25 | 25 | 25 | 25 |
| Maximum stroke of oil cylinder | ≥700 | ≥700 | ≥800 | ≥700 |
| Press fit, retreat the largest wheel | 1350 | 1550 | 3100 | 1350 |
| Maximum embedded shaft diameter of movable beam | 1000 | 1000 | 1000 | 1000 |
| Maximum embedded wheel diameter of movable beam | 1000 | 1850 | 2600 | 1000 |
| Maximum dive length | 3000 | 3500 | 4000 | 3000 |
| Fast assembly speed of main cylinder | 0-4 | 0-4 | 0-4 | 0-4 |
| Motor Power | 18.5KW | 18.5KW | 22KW | 22KW |
| Total installed capacity | 30 | 30 | 37 | 37 |
| Remarks | The configuration and tooling can be customized according to customer requirements | |||
Use field:
A new type of mechanical and electrical integration confidential machine tool, which is a kind of hydraulic press. It is widely used for pressing, assembling, disassembling various parts, such as: the interference fit of the bearing and the axle, the motor rotor It is a high-performance, high-precision, high-efficiency press-fitting equipment for press-fitting of optional shafts, matching press-fitting of locomotive wheel shafts and shafts, and various interference fits in the automotive industry and motor industry.
