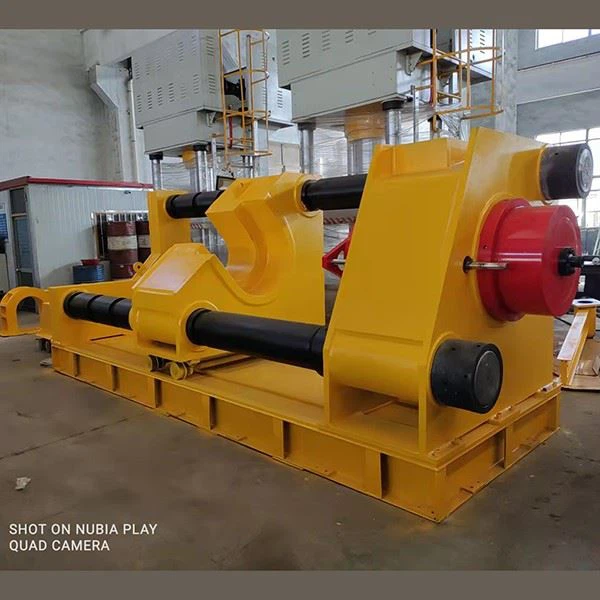

Wheelset disassembly press

This machine is mainly used for the cold-packed wheelset press-fitting of trains and subway vehicles, including the press-fitting operation of existing wheelsets and brake discs. It has mature equipment manufacturing technology and experience, and can provide assembly process.
It can realize automatic one-time press-fitting. Adopt automatic control technology and measurement technology to complete the press-fitting of the wheels at both ends.
Through the measuring device system of inner distance measurement, the inner distance, wheel position difference and disc position difference are automatically detected and controlled, and the pressing position is automatically controlled.
It has the function of detecting displacement and tonnage, and uses a computer to record the pressure curve of the press-fitting process, and automatically judge whether the pressure curve is qualified.
The axle pressing machine adopts hydraulic servo system, and the pressing speed can be adjusted steplessly, and the minimum speed is 5mm/min.
