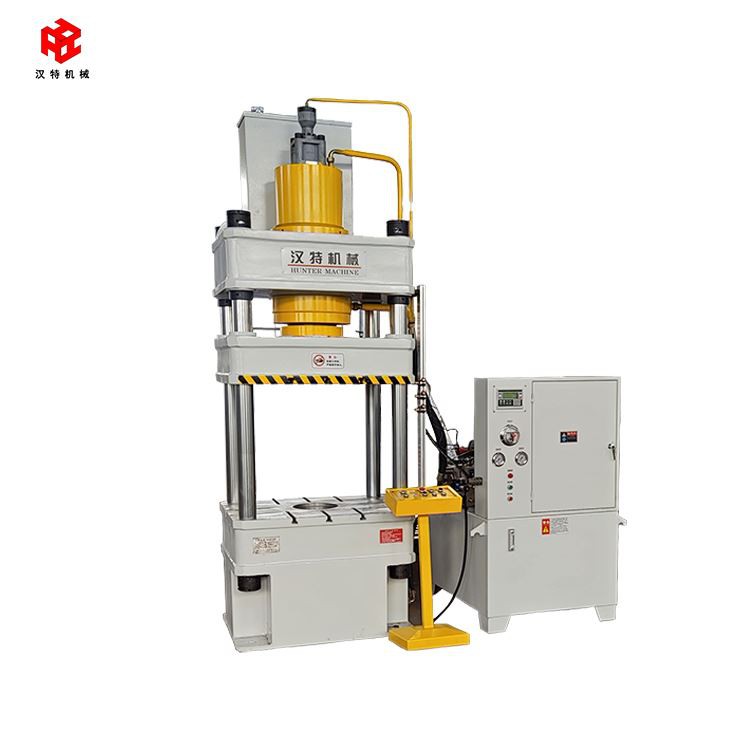

200T three-beam four-column cold press
Product Details：
1. The advanced two-way cartridge valve system has high reliability and small changes in the direction of hydraulic shock.
2. The main hydraulic cylinder is made of alloy cast steel, and the inner surface is precision ground under high pressure for life.
3. The four uprights are made of high-tensile alloy steel, finely ground and electroplated with hard chromium.
4. The key hydraulics and electrical appliances adopt well-known brands such as Germany, the United States, and Japan.
5. The moving worktable has a fast approach speed and higher production efficiency.
6. The mobile workbench is equipped with a hydraulic ejector device for ejecting the workpiece after drawing.
Scope of application：
1.Stamping, forming, shallow layer, deep drawing, clamping, forming, blanking of metal and non-metal parts.
2. Suitable for pressing and forming of watch parts, glasses parts, tableware, photo frames, and metal ornaments.
main feature:
1. Simple operation: user-friendly man-machine interface, easy to set parameters and recipe storage;
2. Control system: PLC+HMI (Siemens brand);
3. Pressing adjustment: high-speed pressing setting to meet the requirements of different pressing processes;
4. Accuracy monitoring: used for linear scales and pressure sensors to monitor position and pressure, and improve the accuracy of pressing;
5. Energy saving: The high-power motor meets the requirements of high-speed and high-voltage processing, and the servo motor drive system saves 40-60% of energy.
| Project | Unit | Specification | |
| Nominal force | KN | 2000 | |
| Opening height | mm | 800 | |
| Slide stroke | mm | 500 | |
| Four column diameter | mm | 100 | |
| Liquid working pressure | Mpa | 25 | |
| Effective size of worktable | left and right | mm | 800 |
| Before and after | mm | 800 | |
| Slide stroke speed | Hurry down | mm/s | 150 |
| Work | mm/s | 5-12 | |
| Return trip | mm/s | 96 | |
| Main tank | Bore | mm | 320 |
| journey | mm | 500 | |
| Lower top cylinder | Bore | mm | 125 |
| journey | mm | 220 | |
| Plunger pump | size | mL/r | 40 |
| factory | JiangSuQiDong | ||
| quantity | 1 | ||
| Electric motor | KW | 11 | |
| Origin | Lianyungang Ruibao | ||
| Fuel tank capacity | L | 400 | |
| Note: The equipment does not contain oil. Three beam welding, time and position control of the lower top cylinder, PLC control, with mobile button box | |||

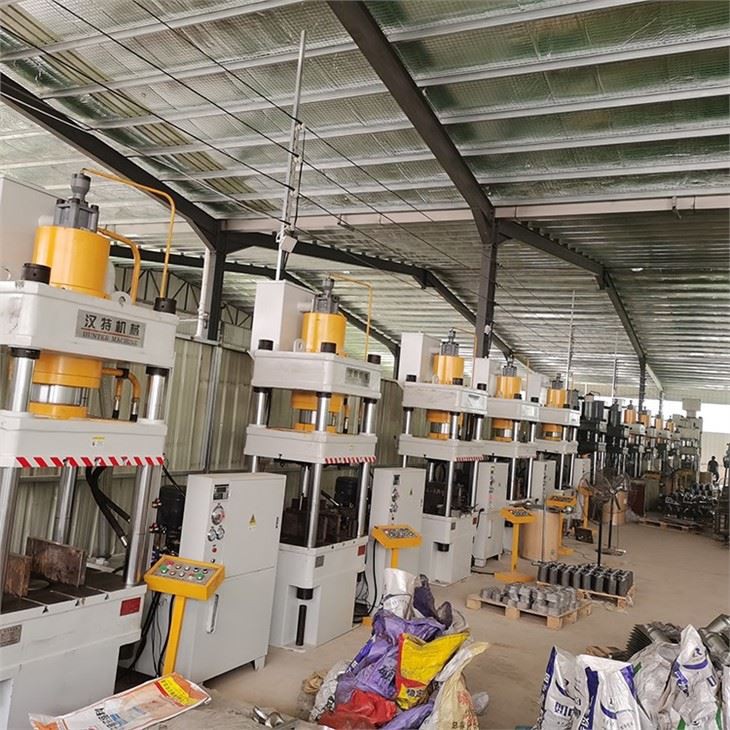

Our factory processes and customizes various presses, single-column hydraulic presses, three-beam four-column hydraulic presses, forming presses, etc. The tonnage and model can be adjusted according to customer requirements to meet all your processing needs. We have ten years of production experience， Products are exported to more than 30 countries， Hope to reach cooperation with your company. If you have an order requirement, you are welcome to reply to the email.
