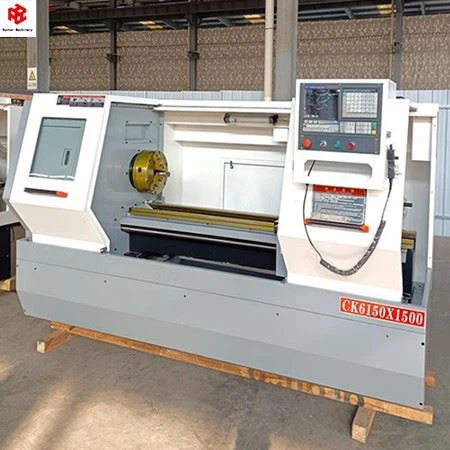

CK6150 Horizontal CNC lathe
This machine tool can automatically complete the cutting process of cylindrical surface, conical surface, arc surface, end surface, grooving, chamfering and other processes for various shafts and chucks, and can perform straight thread, taper thread and other threads It is especially suitable for mass production of parts in general machinery manufacturing industry, especially for complex and high-precision parts, and is also suitable for tool manufacturing industry and education and teaching departments.
The guide rail of the machine tool is hardened and finely ground by audio frequency, with good wear resistance and high precision;
The main shaft adopts single-spindle frequency conversion and speed change; two shafts and two gears frequency conversion and speed change;
The machine tool is equipped with an automatic lubrication system, which can effectively reduce the influence of thermal changes and ensure machining accuracy;
The machine tool can be equipped with CNC operating systems such as Guangshu, Siemens, and Fanuc, which have reliable controllability;
Special accessories such as pneumatic chucks and hydraulic chucks can be added according to user requirements.
| SPECIFICATIONS | Units | CK6136 | CK6140V | CK6150 | CK6160 | CK6170 |
| Swing over bed | mm | 360 | 400 | 500 | 600 | 700 |
| Swing over cross slide | mm | 190 | 210 | 260 | 350 | 440 |
| Distance between centers | mm | 750/1000/1500/2000 | ||||
| Spindle bore | mm | 52 (Optional Opt. 80) | 52 (Optional Opt. 80) | 52 (Optional Opt. 80) | 52 (Optional Opt. 80) | 52 (Optional Opt. 80) |
| Spindle bore taper | MT6 | MT6 | MT6 | MT6 | MT6 | |
| Spindle nose type | C6 | C6 | C6 | C6 | C6 | |
| Spindle speed steps | Manual 2 steps (Optional/Stepless) | |||||
| Spindle speed range | rpm | Low L: 100-500 High H: 500-1800 (Optional 90-1800) | ||||
| Turret/tool post | Electric 4-position Tool Post | |||||
| Tool size | mm | 20*20 | 25*25 | 25*25 | 25*25 | 25*25 |
| X axis travel | mm | 200 | 230 | 280 | 320 | 350 |
| Z axis travel | mm | 750/1000/1500/2000 | ||||
| X axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 | 6000 |
| Z axis rapid traverse | mm/min | 8000 | 8000 | 8000 | 8000 | 8000 |
| Tailstock quill diameter | mm | 65 | 65 | 65 | 65 | 65 |
| Tailstock quill taper | MT4 | MT4 | MT5 | MT5 | MT5 | |
| Tailstock quill travel | mm | 130 | 130 | 130 | 130 | 130 |
| Main motor power | kw | 4 | 4 | 5.5 | 5.5 | 5.5 |
| Coolant motor power | kw | 0.09 | 0.09 | 0.09 | 0.125 | 0.125 |
| Weight for 750 | kg | 1600 | 1700 | 1800 | 1900 | 2000 |
| Weight for 1000 | kg | 1700 | 1800 | 1900 | 2000 | 2100 |
| Weight for 1500 | kg | 1800 | 1900 | 2000 | 2100 | 2200 |
| Weight for 2000 | kg | 1900 | 2000 | 2100 | 2200 | 2300 |
| Dimension for 750 | mm | 2200*1600*1700 | 2200*1650*1700 | 2200*1700*1750 | 2200*1750*1800 | 2200*1800*1850 |
| Dimension for 1000 | mm | 2500*1600*1700 | 2500*1650*1700 | 2500*1700*1750 | 2500*1750*1800 | 2500*1800*1850 |
| Dimension for 1500 | mm | 3000*1600*1700 | 3000*1650*1700 | 3000*1700*1750 | 3000*1750*1800 | 3000*1800*1850 |
| Dimension for 2000 | mm | 3500*1600*1700 | 3500*1650*1700 | 3500*1700*1750 | 3500*1750*1800 | 3500*1800*1850 |
